AppsAnywhere recommends that Apache Tomcat is updated to the latest patch version available for security concerns. For example, if Cloudpaging Server installs with Tomcat version 8.5.1, it is recommended to upgrade to version 8.5.x for the latest stable patch that Apache has released for version 8.5.
When upgrading, Tomcat must be manually installed and configured on all servers running Cloudpaging Server. This article, provides the steps to upgrade from Tomcat 8.5.42 to Tomcat 8.5.55 as an example. Please substitute the versions with the ones upgrading from and to.
The steps on this article, only applies to Cloudpaging Server 9.2 and above.
Where possible, the procedure should be performed in a test environment to ensure that the procedure is followed correctly before being performed in a production environment.
Obtaining the latest Tomcat Installer
The Tomcat installer can be downloaded from the Apache Tomcat site at https://tomcat.apache.org under the download section, install the 32-bit/64-bit Windows Service installer.
Please validate the hash when downloading the installer.
Removing the Tomcat8 service
The Tomcat upgrade should be performed on one server at a time to prevent service interruption
First, remove the default Tomcat service so it does not conflict with the service installed during the newer Tomcat installation.
Open an elevated command prompt.
Depending on your version, navigate to the Tomcat8.exe directory:
cd "C:\Program Files (x86)\Apache Software Foundation\tomcat-8.5.XX\bin\"CODE
Enter the following command to remove the Tomcat service:
Open services.mmc and verify the default Apache Tomcat8 service is no longer present.
Close the command prompt.
The default Tomcat service is installed during the tomcat installation. If a pre-existing Tomcat service is installed then the new Tomcat service cannot be installed and the install will fail, therefore the service needs to be uninstalled before running the installer. Cloudpaging Server does not use this service and it can safely be removed if not used elsewhere.
Installing Tomcat 8.5.x
Follow the steps below to install Tomcat using the installer.
Run the downloaded installer
Accept the EULA

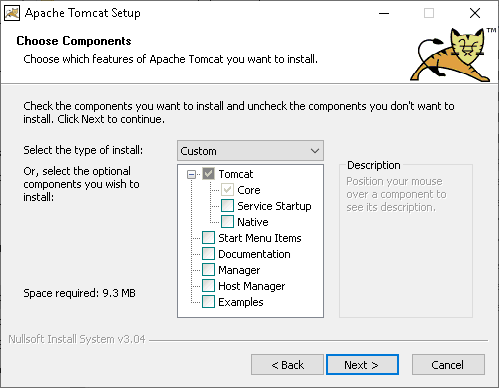

At the Choose Components screen, Uncheck everything but the Tomcat Core component as in the screenshot below

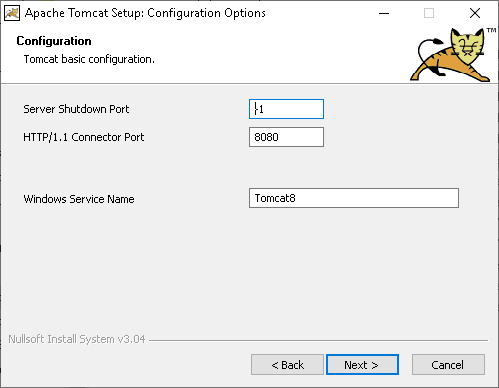

Keep the default values and click Next > at the Configuration screen.

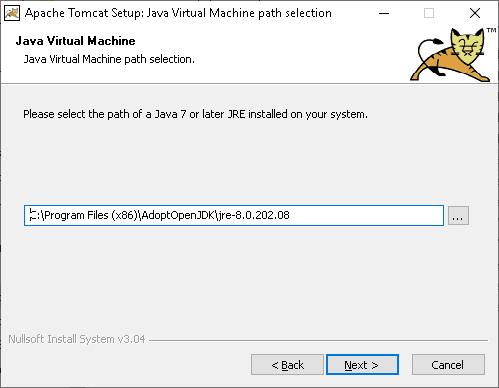

At the Java Virtual Machine screen, enter the following path:
C:\Program Files (x86)\AdoptOpenJDK\jre-8.0.202.08

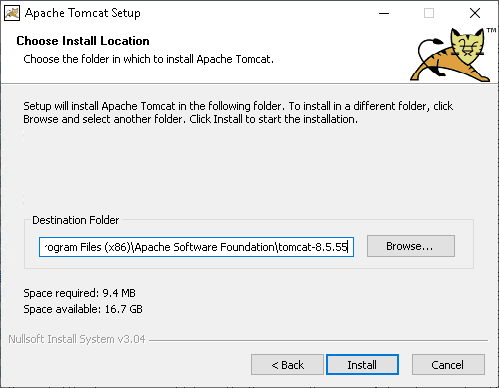

When asked to choose the install location, enter C:\Program Files (x86)\Apache Software Foundation\tomcat-8.5.XX and click Install:

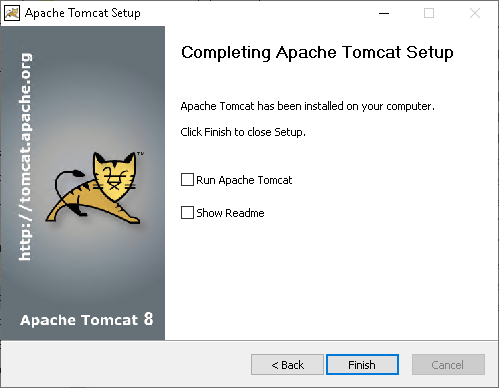

At the Completing Apache Tomcat Setup screen, uncheck Run Apache Tomcat and click Finish
Updating the Cloudpaging Server Configuration
Once Tomcat 8.5.x has been installed, the Cloudpaging Server configuration must be updated to use the new Tomcat version.
Open the Registry Editor (regedit.exe) and navigate to the following registry key:
HKEY_LOCAL_MACHINE\SOFTWARE\WOW6432Node\Apache Software Foundation\Procrun 2.0\JukeboxServer\Parameters\Java
Edit the following registry value:
Value Data: Modify any mentions of the path for the Tomcat install to reflect the new path.
(Example: C:\Program Files (x86)\Apache Software Foundation\tomcat-8.5.55\bin\bootstrap.jar;C:\Program Files (x86)\Apache Software Foundation\tomcat-8.5.55\bin\tomcat-juli.jar;C:\Program Files (x86)\Numecent\Application Jukebox Server\mssql-jdbc-7.2.1.jre8.jar)
Note: Classpath contains two path mentions for Tomcat
Edit the following registry value:
Value Data: Modify the -Dcatalina.home line to reflect the new Tomcat install path
(Example: Dcatalina.home=C:\Program Files (x86)\Apache Software Foundation\tomcat-8.5.55\)

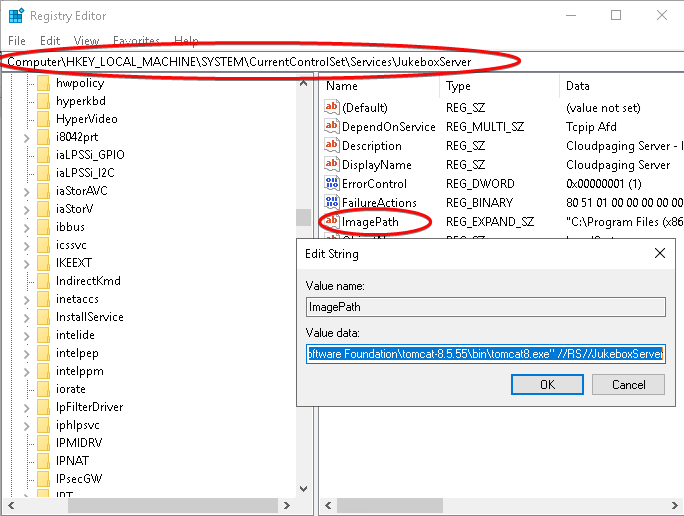

Then, navigate to the following registry key and edit the value below: HKEY_LOCAL_MACHINE\SYSTEM\CurrentControlSet\Services\JukeboxServer
Value Data: Modify the path to Tomcat to reflect the new location
(Example: "C:\Program Files (x86)\Apache Software Foundation\tomcat-8.5.55\bin\tomcat8.exe" //RS//JukeboxServer)
Restart Cloudpaging Server by using the Services MMC
Configuration Verification for updated Tomcat use
To verify that Cloudpaging Server is using the new Tomcat, take a look at core_service.log file located in <Cloudpaging Server installation directory>\core\logs\core_service.log (default location is C:\Program Files (x86)\Numecent\Application Jukebox Server\core\logs). You should see the following lines if you have successfully configured Cloudpaging Server to use the new Tomcat (8.5.55 is the upgrade version in the example below).
Configuration: catalina.home: C:\Program Files (x86)\Apache Software Foundation\tomcat-8.5.55
Tomcat file Cleanup
After you verify Cloudpaging Server is using the new Tomcat install, remove the old Tomcat install directory.
(i.e. C:\Program Files (x86)\Apache Software Foundation\tomcat-8.5.42)
Remove the default ....webapps\ROOT subfolder as well since it is not used (C:\Program Files (x86)\Apache Software Foundation\tomcat-8.5.55\webapps\ROOT)
