Using Dashboards

Finding the Dashboards

If you are an Analytics user, you will have access to a page which shows all the dashboards you have access to. To navigate to this page:

1. Log into AppsAnywhere as a user with either the Analytics User or Analytics Explorer role

2. Click on Return to Admin (or Return to Analytics if you are not an admin) to access the AppsAnywhere admin portal

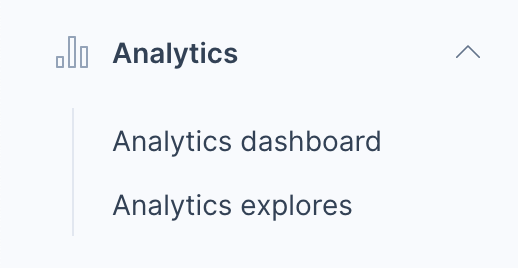

3. If you have the Analytics User role, or Analytics > Dashboards if you have the Analytics Explorer role

Landing Dashboard

The landing dashboard is the first dashboard you see. This contains a general overview of your system usage, including:

• Logins in the past 30 days

• Number of active users in the past 30 days

• Number of unique devices seen in the past 30 days

• Top 10 resources (by number of launches) this month

• A breakdown of the operating systems used by the people logging in

• A list of all applications and desktops that have been launched through the system

• A geographical overview of application launches by country

Apps any desktops listed in the Top 10 resources this month, All applications and All desktops lists will take you to a more detailed dashboard which gives you much more detail on the app or desktop.

To return to this dashboard at any time, click the Dashboard button in the sidebar.

Types of Dashboards

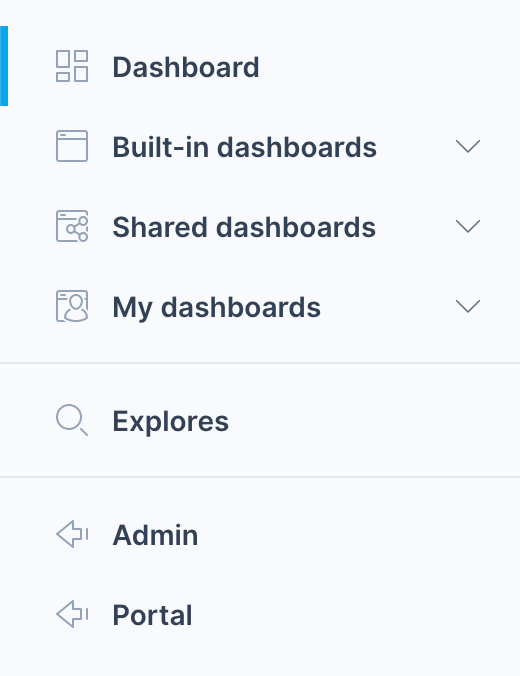

There are three types of dashboard in AppsAnywhere, all of which are accessed from the left-hand menu in the Analytics interface. These are:

1. Built-in dashboards

2. Shared dashboards

3. My dashboards

Built-in Dashboards

The Built-in dashboards are provided by default, they were built by AppsAnywhere in close collaboration with customers and are a great starting point for gaining insights into AppsAnywhere usage. You will most likely start using Analytics by viewing these dashboards, before moving onto creating your own reports and dashboards as you get used to the system and get a better idea of exactly what you want to see.

When you do start wanting to create your own reports, a great way to learn the system and get a feel for how dashboards are created is to take a look at how we made these built-in dashboards, as described on the Creating the Built-in Dashboards article.

Shared Dashboards

Shared Dashboards are dashboards created by people within your organization. Dashboards saved in the shared space will appear here and can be viewed by any of your colleagues with access to Analytics. This is a great place to save dashboards that you have created that you want other people to see.

My Dashboards

When you create a dashboard and save it in your personal space, it will appear in the My Dashboards section. The dashboards in this section are only visible to you and this is a great place to save things that only you are interested in, or any dashboards you are still working on that aren't yet ready to share.

Filtering

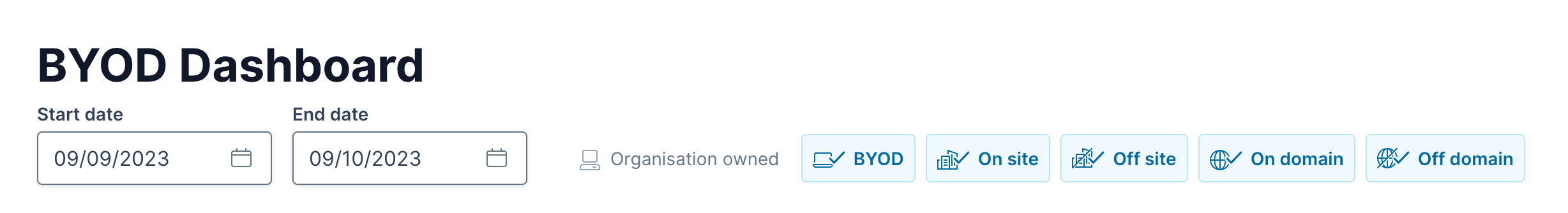

The Built-in dashboards allow you to filter by certain parameters.

Filters will be shown by default when viewing a built-in dashboard, but can be hidden with the Hide filters button.

There are several filters that may be present, these are:

• Date range in which the launch occurred

• Organization-owned or user-owned (BYOD) devices

• On-domain or off-domain devices

• On-site or off-site launches

The date range allows you to select the range of times what you want to see data for, while the toggle buttons allow you to toggle between one value and both. Where possible, data in all of the tiles on that dashboard will be limited by the filters you apply at the top of the page.

On some dashboards, some filters may be disabled if they are not appropriate to the data being displayed on that dashboard.
